Years after having walked on the Moon, mankind still has lots to discover in the depths of the seas.

After thirty years of experience in developing waterproof cases for video and photographic cameras, we have recently developed a Smart Cam with built in TTL Telemetry (temperature and pressure). Such solution has allowed our clients to avoid adding new cables to diving umbilical. The integration of on-board electronic systems contributes to productivity and safety of the divers.

Aza Dive products are distributed by Mako Services Ltda
Phone (5521) 3042-5307 Mobile 99663-9663 email: eduardo@makoservices.com.br

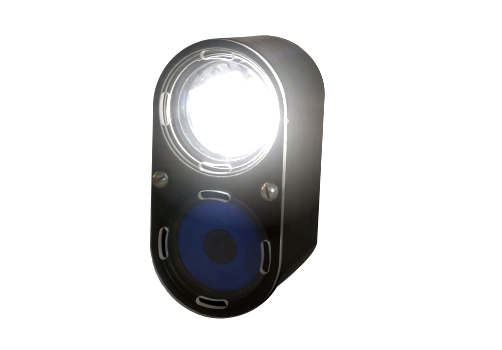

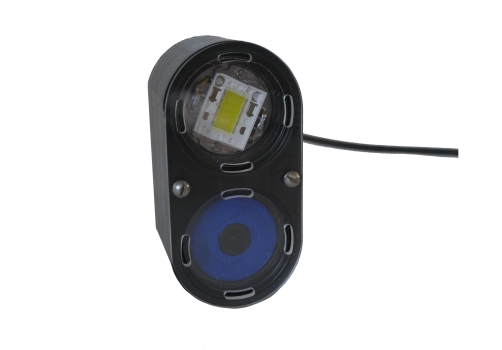

AZA Smart Cam With LED - Light

Color Video Camera 1/3" HAD CCDII for diving up to 100m.
Photografic LED – 15 w; No flares
Built in telemetry with digital processing. Proprietary Software with data reading on computer.
Diving Data Log.
Frontal Lens in Policarbonate
External replaceable acrylic lens
Stainless Steel Bulk-Head 4 pins
Patent pending: BR 30 2015 004111 0

Size: 108mm x 154mm x ( 57mm + 35 mm BulkHead).
Material: Body: Black Polyacetal;
Cover: Stainless Steel;
Weight: 343g in the air
Power supply: 12V from surface by umbilical.
Led : LED with luminosity control 0-5 v (pin 4)
This camera is suited for professional diving, with or without telemetry.
The Telemetry Software allows dimmer function controlled by the mouse or keyboard of the computer.
The Smart Cam is connected to the bell through traditional Diving Umbilical with 3 wires (neg/pos/video) .
TTL Telemetry signal is sent via power wire.
A interconnection device is installed in the Bell to receive data from Diving Umbilical and transfer TTL signal via four wire UTP cable.
This signal is decoded on surface and sent to a computer through USB cable. LED luminosity is controlled by a slide key in the Telemetry Software
Patent pending: BR 30 2015 004111 0


AZA Smart Cam

Color Video Camera 1/3" HAD CCDII for diving up to 100m.
Built in telemetry with digital processing.
Proprietary Software with data reading on computer.
Diving Data Log.
Frontal Lens in Policarbonate
Stainless Steel Bulk-Head 4 pins
Patent: BR 30 2014 003679-3

Size: Diameter 36mm x 154mm length
Material: Stainless Steel 316
Weight: 900g in the air
Power supply: 12V from surface by dedicated system.
The Smart Cam is connected to the bell through traditional Diving Umbilical with 3 wires (neg/pos/video) . TTL Telemetry signal is sent via power wire. A interconnection device is installed in the Bell to receive data from Diving Umbilical and transfer TTL signal via four wire UTP cable. This signal is decoded on surface and sent to a computer through USB cable.


INTERCONNECTION UNIT and SURFACE UNIT

Interconnection Unit
Surface Unit

Size: 35mm x 20mm x 64mm
Contruction: PStandard in Plastic. Special waterproof development for Open Bell
Power Supply: 12v from surface
Interconnection unit, installed in the Bell allows Diving Umbilical to be extended from 100m to 600m. The Surface Unit receives signal from a UTP four way Cable and transfer decoded data to a computer running our dedicated Smart Cam software.


VIDEO OVERLAY MIXER

Video Overlay System
Displays telemetry data over video image.
Works jointly with AZA TELEMETRY SOFTWARE software, version 1.61 or superior

Size: 54mm x 65mm x 30mm
Software: AZA ver 1.61 e sucessivos
Power feeding: USB cable
System mixes video signal from diver with Telemetry data, overlaying with transparent characters. Works with the same USB cable connected to Telemetry computer, version 1.61

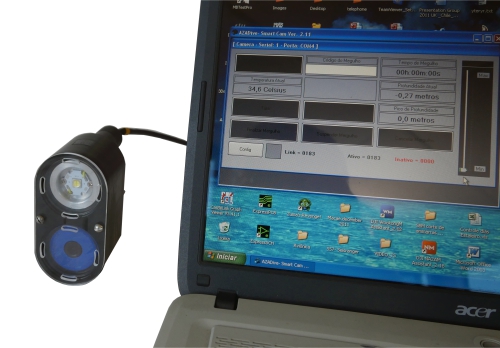

Telemetry software with LED control

Software version 2.11 for telemetry, generating overlay and LED control.

Environment: Visual Basic
Operating System: Windows 7 or higher
Log: Text File
Software manages and shows the telemetry data: Water temperature and depth of the diver. Compiles a dive log file. Informs the hours, minutes and seconds of diving from the beginning of the operation. internally creates a link to the plate "Overlay" to the telemetry data are mixed on the video screen. A practice slide direct allows the operator to manage the brightness of the LED.

Software Copyrights AZA DIVE.
For further copies please contact
Email: suporte@azadive.com.br
our distributor:
Email: eduardo@makoservices.com.br


TELEMETRY SOFTWARE

Software versão 1.4 para monitoramento da telemetria

Environment: Visual Basic
Operational System: Windows 7 or newer
Log: Text file
The software manages and displays Telemetry Data – water temperature and diver depth. Compiles a log file for each diving session. Displays hour/minutes/seconds from de beginning of operation.

Software Copyrights AZA DIVE.
For further copies please contact
Email: suporte@azadive.com.br
our distributor:
Email: eduardo@makoservices.com.br


OVERLAY TELEMETRY SOFTWARE

Overlay Telemetry Software Ver 1.61

Environment: Visual Basic
Operational System: Windows 7 or newer
Log: Text File
More Details: The Software manages and displays Telemetry data – water temperature and depth. It compiles a dive log file. Shows diving time, in hours, minutes and seconds. Generates a link for the overlay board so telemetry data will be mixed with video screen.

Software Copyrights AZA DIVE.
For further copies please contact
Email: suporte@azadive.com.br
our distributor:
Email: eduardo@makoservices.com.br


DIMMERIZED LED FLASHLIGHT

20W LED Flashlite
Case in stainless steel 3.16, water resistance over 1.000 meters.
Frontal Lens: polycarbonate
Adapted Marsh Marine bulk-head, 4 pins.

Size: Front Diameter:;63mm, Body Diameter 33mm; Total length 126mm.
Material: Stainless Steel 3.16
Weight: Stainless 600g in the air
Power supply: 12v and command sign 0-Sv
20W LED Flashlite for photographic application. System Internally processed. 0-5v command signal as power dimmer. Light emission pulses faster than video frame capture, avoiding strobe effect. .


VIDEO CAMERA

Color Video Camera 1/3” HAD CCDII Sony for professional diving, up to 300 metres.
Polycarbonate frontal lens.
Stainless Steel 4 pin Bulk Head
Pending Patent: Industrial Design.

Size: Diameter 32mm; Length 120mm
Material: Stainless Stell 3.16
weight: 518g in the air
Power supply: 12v and command sign 0-Sv
Color Video Camera, very compact, ideal if connected to equipment with remote monitoring system, or professional diving without telemetry.

HYPERBARIC CHAMBER – 100m

Hyperbaric Chamber for testing cameras and sensors up to 100m
Two Stainless Steel Bulk-Heads for sensors connection.
Analog barometer
Digital pressure sensor up to 100m
Internal Temperature sensor
Control Software that generates log file for emission of Certificates.

Size: Internal Diameter 95mm, Length 310mm
Material: Welded Stainless Steel 304
Weight: 15kg
Compressor: Hermetic 110v 60Hz
Hyperbaric Chamber has digital sensor with AZA software control , dedicated to log file emission for comparison between systems under test.
Holds air, Helium, Water and other liquids. .
